Description

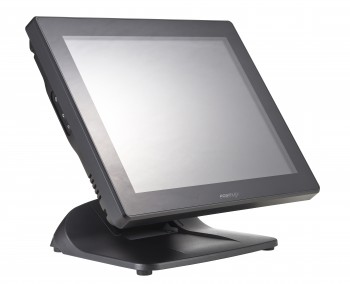

The XT-7315 is the companion of the XT-6315, which has been enhanced with 8th generation Intel Coffee Lake CPUs, which is powerful enough to handle any task imaginable that comes its way.
Processor: Intel Coffee Lake Core i3-8100T;
Intel Coffee Lake Core i5-8500T
System Memory: DDR4 SO-DIMM x 2, max. 32 GB
Storage Device: SATA connectorx 2 + M.2 connector [SATA Signal Only] x 1
Power Supply: 12V/100W
OS Support: Windows 10 IoT 64 bit/ Windows 11
Display & Touch
LCD: 15” TFT LCD
Resolution: 1024 x 768
Touch: True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O Expansion
Serial Port: 4, DB9 x 2 + RJ50 x 2 + optional COM 5 / COM 6 via converter cable
Parallel Port: 1, via optional conversion cable through service window
Standard USB Port: 6, USB 3.0 x 4 + USB 2.0 x 2
Powered USB Port: Optional 24V x 1 + 12V x 3 via GEN8E base
LAN Port: 10 / 100 / 1000 Mb x 2
Display Port: VGA x 1, 12V support for Posiflex monitors; mini-HDMI x 1
CR Port: 1, control 2 CR via optional Y-cable, supporting 24V cash drawer
PS/2 Port:1, via optional conversion cable through service window
UPS Port:Yes, battery optional
Audio: Internal 2W speaker x 1 + Line-out
Expansion Slot: 2 slot x 1
